Description
Product
Descriptions.
Designed and Manufactured in Singapore.
Note: Currently website orders are only shipping to clients in Singapore and Malaysia. Please contact us at support@performance-rotors.com for shipping to other countries.
- Telescopic high quality carbon fiber pole, extendable up to 15m
- Light weight and portable
- Inspection lights with dimmer control
- Adjustable camera tilt angle via long range wireless controller
- Height of camera is displayed on user screen for convenience
- Auto or Manual focus distance from 5cm to 1,000cm (0.05m to 10m)
- View inspections in real-time up to 1080p on controller screen and record videos up to 4K resolution in SD Card.

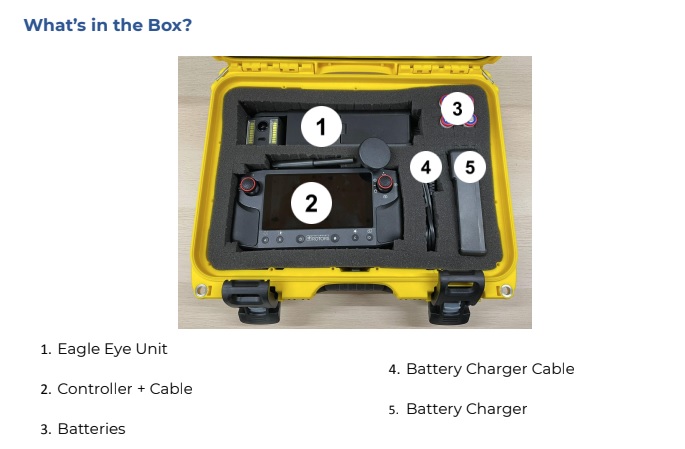

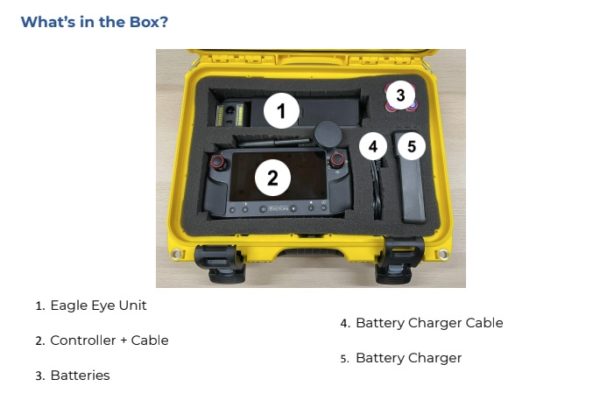

Ships with:

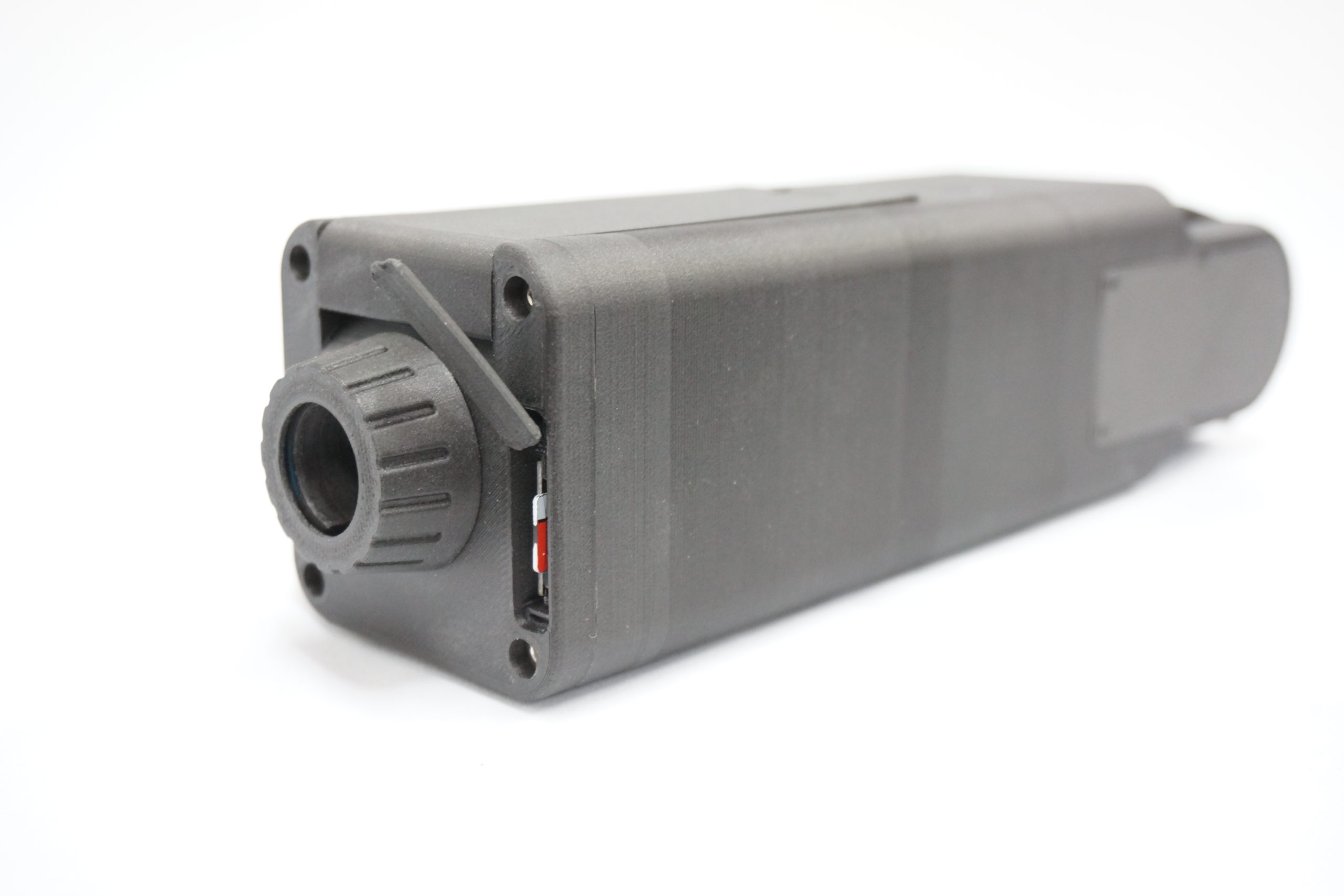

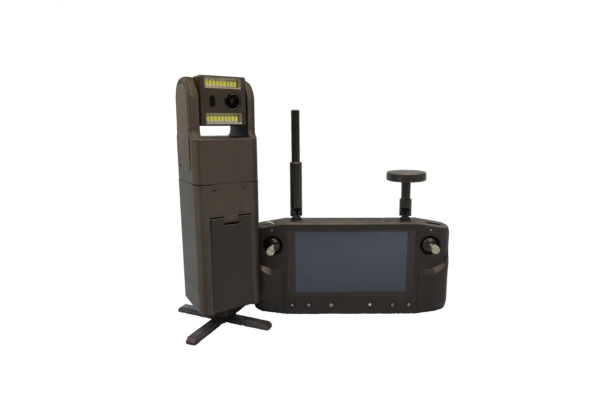

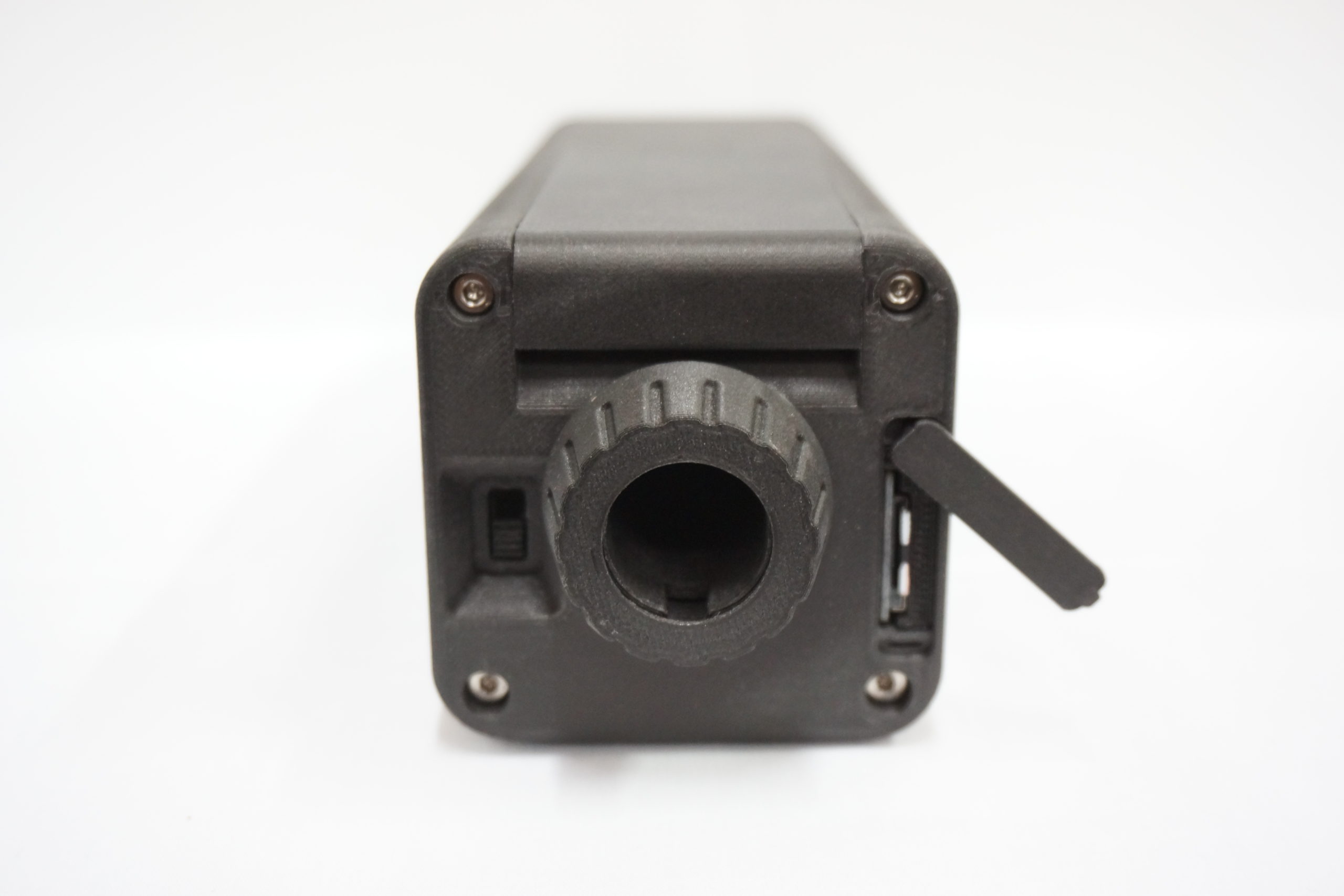

- 1 unit of Eagle Eye Camera
- 1 unit of Eagle Eye Controller
- 1 set of Eagle Eye Battery (1 set = 2pcs)
- 1 set of charger and charging cable
- 1 unit of Eagle Eye Case
- 1 unit of 15m Carbon Fiber Telescopic Pole
The finishing of the product and case color may differ from images on this website.
Download Brochure Here
Eagle Eye Specification
| Camera | Photo: 16 Megapixels Video: Up to 4K 30fps (comes default 2K 60fps) Focus: Auto or Manual Adjustable Focal distance: 5cm to 1,000cm (0.05m to 10m) Tilt angle: 225degrees (135degrees forward, 90 degrees backwards) LED: brightness controls up to 400 lumens SD Card: recording up to 64GB SD Cards UHC accepted |

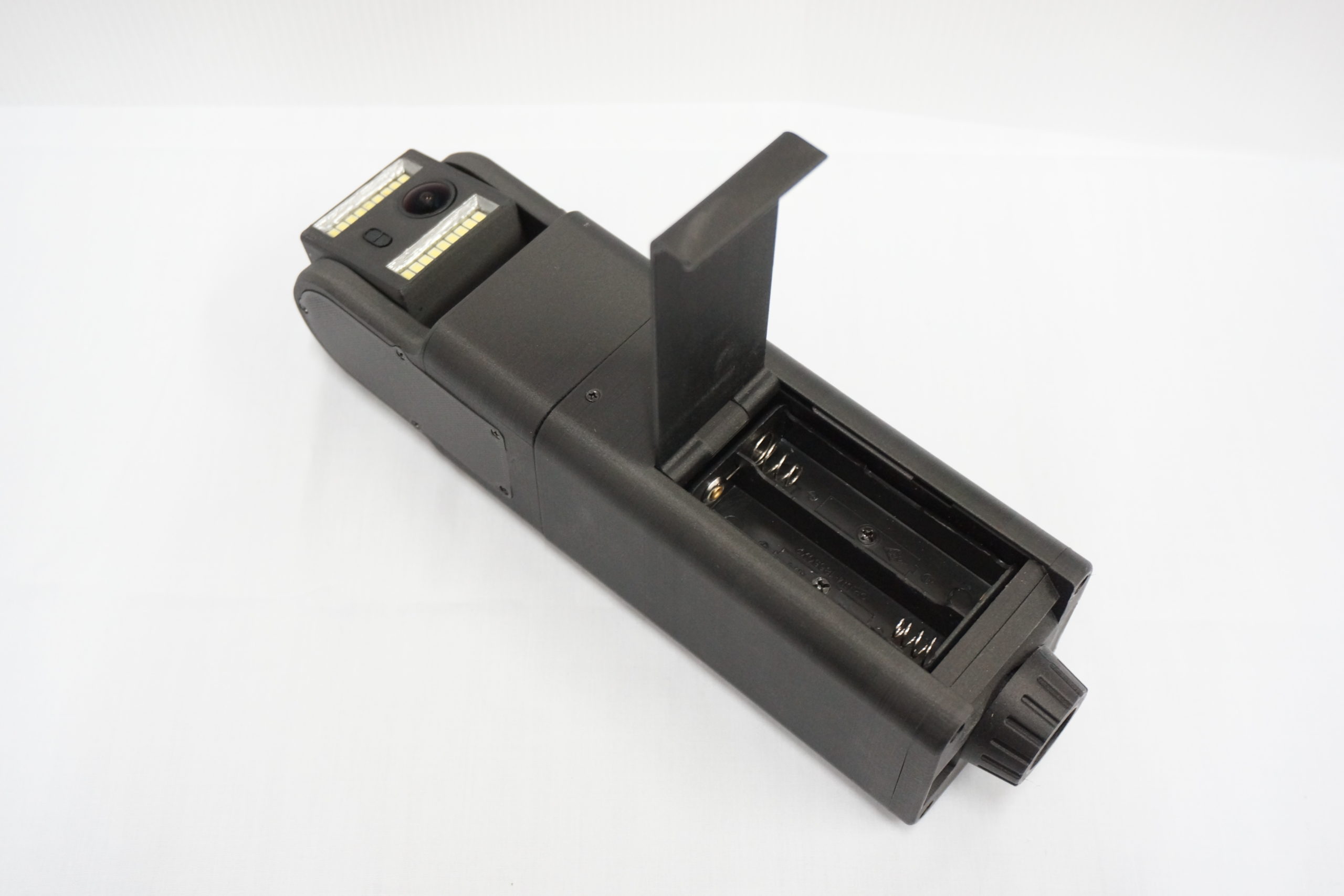

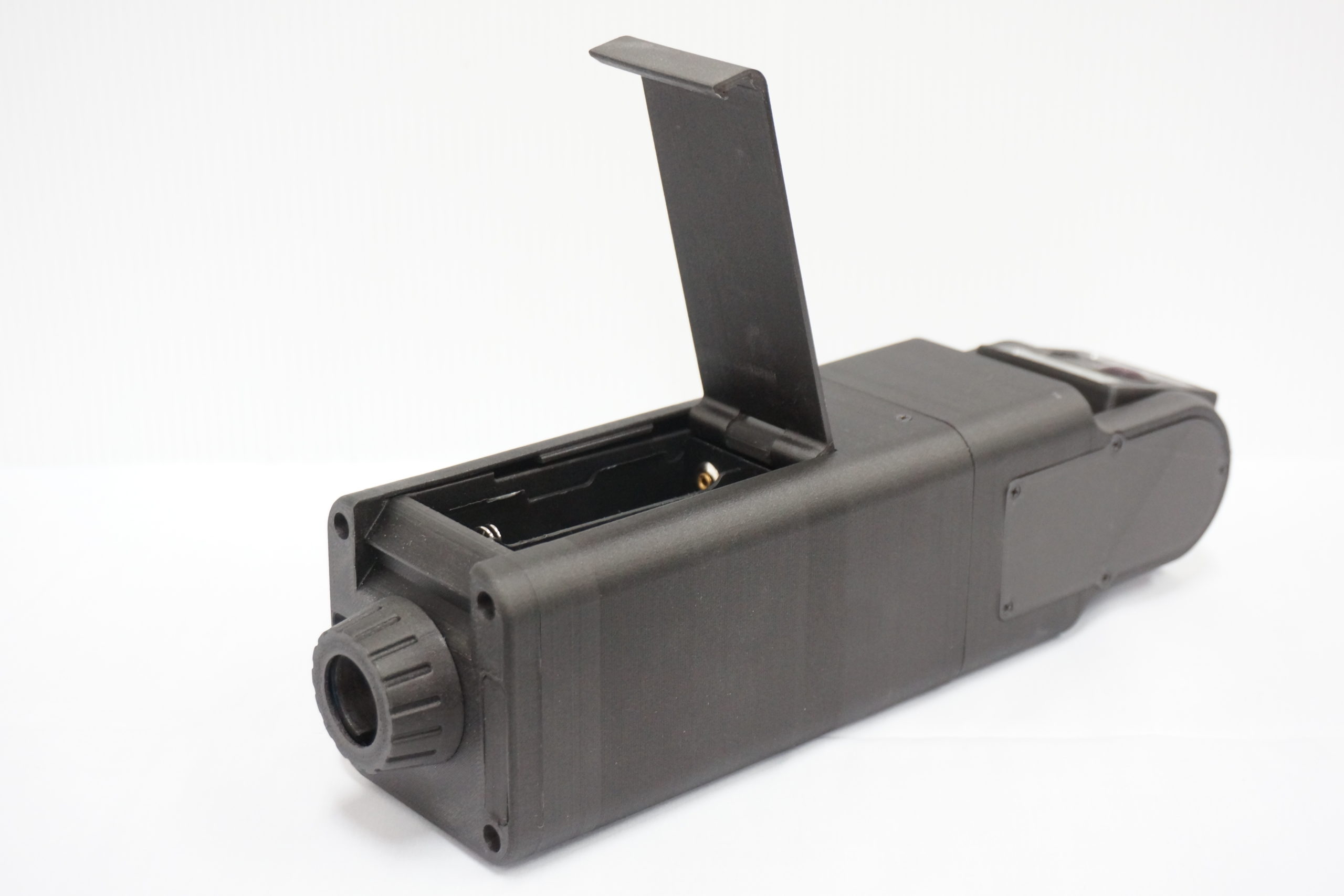

| Camera Battery | Size: 2 x 18650 Li Ion Capacity: 3500mAh Battery life: Up to 1 hour Swappable Battery |
| Dimensions | Eagle Eye Camera: Size: 65mm(W)x65mm(D)x230mm(H) Weight: 500gm Telescopic Pole: Height: 1.6 to 15 metres Weight: 3,500gm |

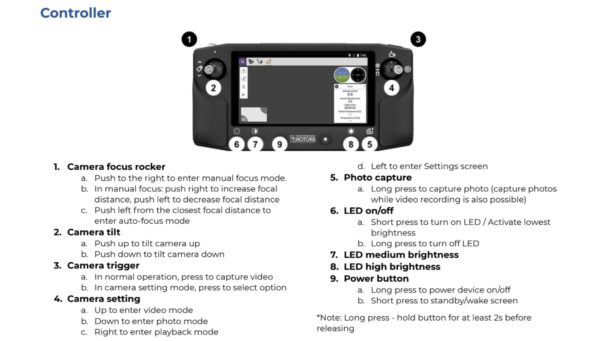

Controller Specification
| Appearance & Interface | |
| Dimensions | 217x106.5x31 mm (not included antennas and analog sticks) |
| Material | Plastic |
| Video | 5.46 inches, 1080p, 16 million colors. LCD touchscreen |
| Audio | Build-in Speaker x 1 build-in mic x 2 |
| Remote Control | Rocker x 2 / wheel x l / bottom key x 6 / with back light top key x 1 (right) |
| Modem | BT / WiFi / GPS 2.46 transmisson ground system |
| Indicate Light | Top tri-color light * 2 (left, right) |
| Interface | MicroUSB x 1 Tflash x 1 (Supports maximum expansion capability up to 64GB) |
| Antenna | Directional antenna (4.5dBi) x 1 / sectional omni Antenna (2dBi) x 1 Sectional built in WiFi antenna / built in (GPS antenna) External GPS antenna interface |
| Battery | Built in 4950 mAh lipo battery |
| Charger | Support Micro USB 2A charge |
| Features | |
| Processor | SoC - pinecone S1 AP: 4 x big cores, Cortex A53@2.2GHz 4 x small cores, Cortex A53@1.4GHz GPU: 4 cores, Mali- T860 SDR: A7+DSP |
| Storage | LPDDR3: 1GB eMMC 4GB |
| Transmission Range | FCC 20km CE / SRRC 12km (Tested Wireless controller range up to 10km unobstructed) |
| Latency | Minumum 110 mms (from input source to ground control screen display) |
| Video Resolution | 720p @ 30 fps 1080p 30/60 fps |
| Operating Frequency | 2.40GHz ISM |
| Receiver Sensitivity | -99dBm @20MHz BW |
| Interference Recovery | < 1s |
| Power Consumption | Average beIow 4W *Only when transmission system working medium brightness, WIFI closed, GPS closed |
